Drill Pipe Screens

JOHNSON SCREEN

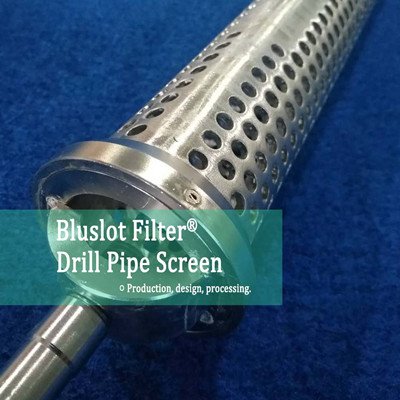

It is a metal filter protection screen with a conical structure(usually made of stainless steel, but also can be customized according to customer requirements), which is used in drilling engineering. Bluslot brand products can work at any temperature and usage environment.



Product design services of drill pipe screen

1. We have regular products in stock all year round. Including: 2-1/2, 3-1/2″, 4″, 4-1/2″, 5″ and 5-1 2″.
2. We provide customized services for other special specifications, and our technical team will provide 3D drawing design services within 24 hours.

Test certificate provided by Bluslot

a. Material test certificate.
b. Stress testing.
c. Dimension test certificate.
d. Gap (aperture) detection.
e. Product packaging inspection.

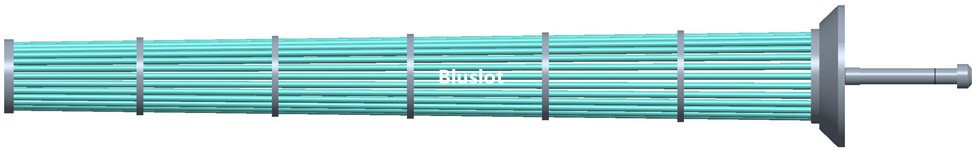

Drill pipe screen design




Bluslot can meet all your custom requirements for the drill pipe screen.

FBK Drill pipe mud screen specifications

The function of the drill pipe screen: Filter the drilling fluid to prevent the solids in the drilling fluid from damaging MWD, valuable equipment, and other downhole tools.

Types of drill pipe screen: Slotted, perforated, and rod.

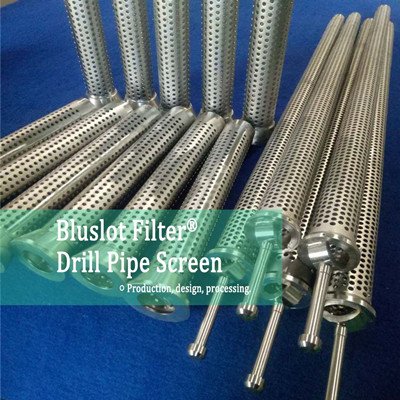

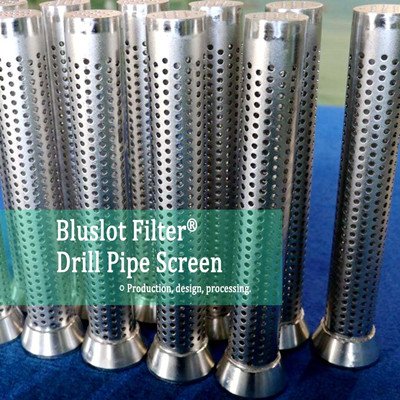

TYPE 1: Perforated pipe screen

  • Material: AISI304, AISI316 or super duplex stainless steel
    Length: 12″, 18″, 24″, 36″

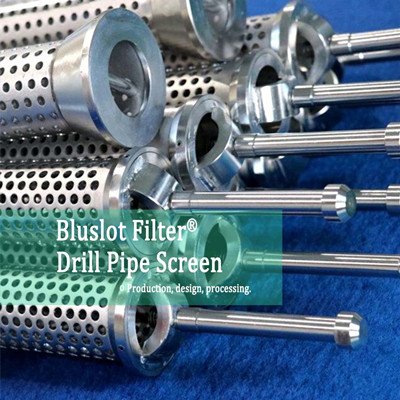

    Thickness: 7 gauge & 11 gauge
    #7: low flow rates | #11: low to mid-range flow rates
    Hole diameter: 5/16″, 1/4″, 3/16″
    Sizes: 2-1/2, 3-1/2″, 4″, 4-1/2″, 5″ and 5-1/2″
    The most common form, it is the best choice in a generally benign drilling environment with low flow rates and mild LCM.

When drilling medium and low flow, perforated pipe screen is more popular (7 gauge for low flow rates & 11 gauge for low to mid-range flow rates).

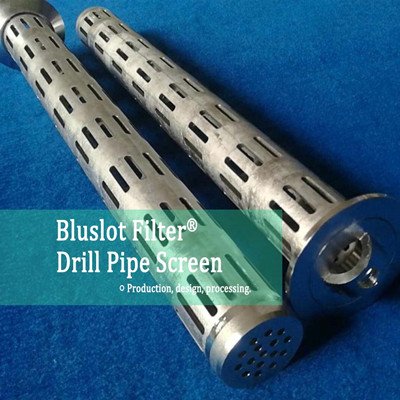

TYPE 2: Slotted type pipe screen

  • Material: AISI304, AISI316, or Super duplex stainless steel
    Length: 2′ or 3′
    Thickness: 1/4″.
    Slot length: 1/4″
    Outer diameter: 1-3/4″, 2″, 2-1/2″, 2-7/8″
    Features: The most solid structure.

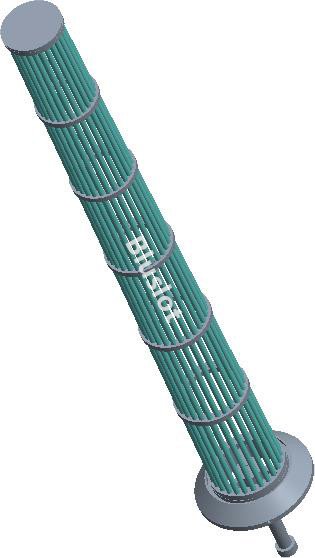

TYPE 3: Rod type pipe screen

  • Material: AISI304, AISI316, or 17-4 Stainless Steel H900
    Length: 2′ or 3′ › Rod diameter: 3/16″ or 1/4″.

I/O Rings

  • Fishneck Style
  • Tripod Style
  • Open Top Style
  • These three are the most common rings, and we do not stock them all year round. If you need to customize other specifications, we can meet your requirements.

Our production equipment

♠ Numerical Control Turret Punch Press for Perforated & Slotted type pipe screen

Numerical Control Turret Punch (NCT) integrates machines, electricity, liquid, and gas. It is pressure processing equipment for punching and shallow drawing forming on the plate through the turret punch die.
Advantage: High production efficiency, the good flatness of workpiece, less subsequent processing, low scrap rate, high forming quality, and fast delivery time.

Laser cutting equipment

High precision, fast speed, small heat-affected zone, and not easy to deform. The cutting seam is smooth and beautiful, with no need for subsequent processing, high-cost performance, low use cost, stable performance, and continuous production.

Quality inspection equipment

Spectrum detector, pressure tester, microscope detector.

Our advantage

  • High-quality raw materials.
    The factory is located in Hengshui City, China, the hometown of drill pipe screen, which is the raw material producing area of the filter. We can better control the quality of raw materials.
  • Advanced production equipment.
  • Surface treatment process.
    The self-developed surface treatment process increases the service life of the treated drill pipe mud screen by 30%.
  • Fast delivery.

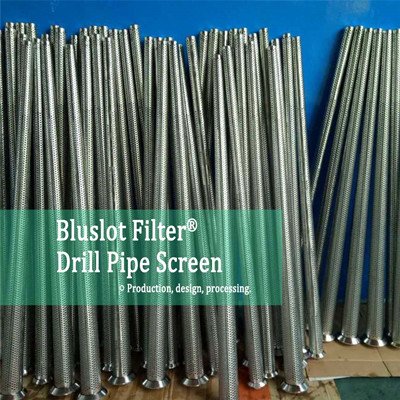

    We keep stocks of products in regular sizes all year round. Can be shipped within three days.
    We provide customized services of special product specifications for customers all over the world.
  • 3D&CAD drill pipe screen drawing
    We provide customers with product design services and design drawings.
  • Strong erosion resistance.
