V Wire Screen Panels for Water Treatment to France

Wedge wire screen panels can be applied to water treatment. Today, we completed 80 pieces of screen in 2 weeks.

Bluslot can customize screen panels products of various specifications.

Wedge Wire Screen Panels (Blu-Sp-12) Specifications

  • Type: Wedge wire screen panels.
  • Model: Blu-Sp-12

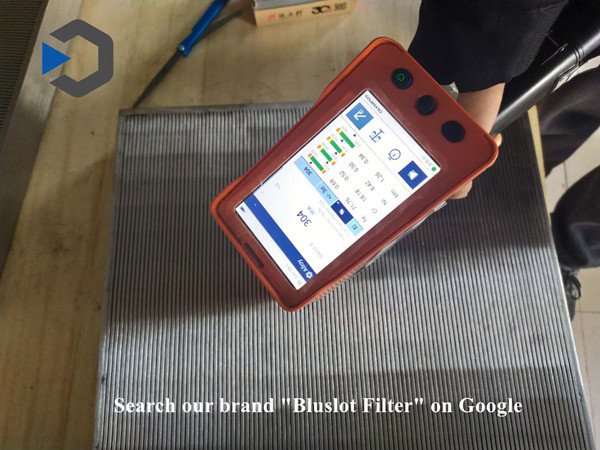

  • Material: Stainless steel 304.
  • Slot size: 1.0 – 2.0 mm.
  • Profile wire: 2.5 x 4.5mm.
  • Support wire: 2.5 x 4.5mm.
  • Quantity: 80 pcs.

Wedge Wire Screen Panels (Blu-Sp-12) Technical Requirement

  1. The mesh surface is flat and smooth.

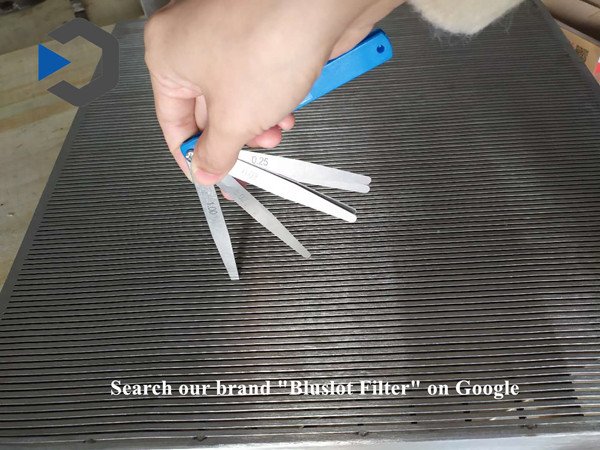

  2. The gap is uniform and the error is kept within 0.005mm
  3. The welding is firm and unchangeable.

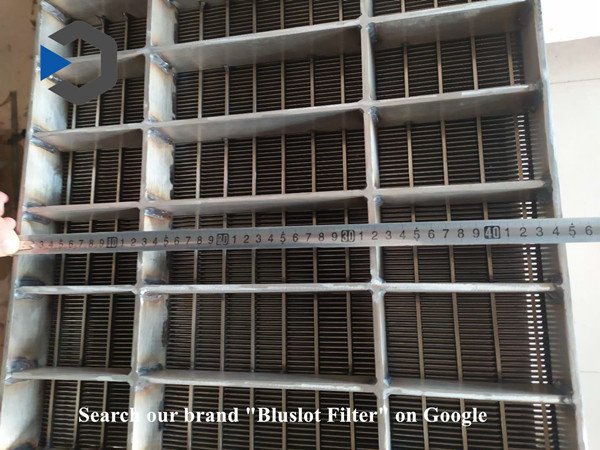

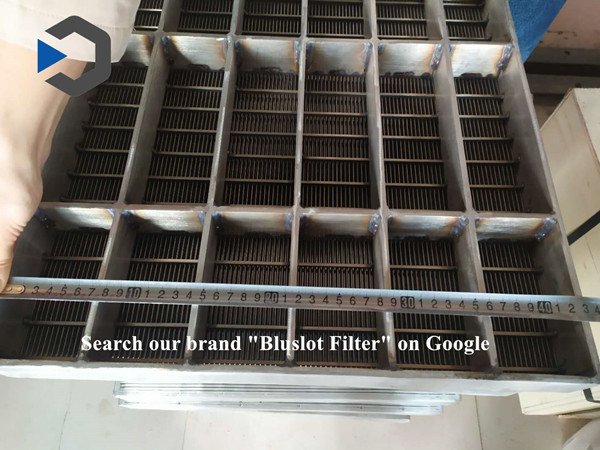

  4. Full welding is used between the frame and the frame.
  5. All the contact points between the frame and the V wire supporting rod are spot welded.
  6. Remove sharp edges from the border.
  7. The surface is treated with acid pickling to enhance the corrosion resistance.
