Water Purification Pipeline Resin Debris Removal Device

JOHNSON SCREEN

Water Purification Pipeline Resin Debris Removal Device

In the process of water purification, when water treatment is carried out with resin. Such as soft water bed, mixed bed, shade bed, and sun bed treatment. The resin particles in the soft water bed, mixed bed, in bed, and cation bed will be slightly broken due to insufficient strength or large water pressure disturbance (especially high-pressure disturbance).

And the formation of resin fragments into the following equipment. affect the normal operation of other equipment in the system. And existing water purification pipeline does not have a device that removes resin debris.

The purpose of the utility model is to provide a device for removing resin fragments in a water purification pipeline. To solve the resin particles in the existing soft water bed, mixed bed, in bed, and cation bed in the prior art, there will be a small amount of broken resin due to insufficient strength or large water pressure disturbance (especially high-pressure disturbance).

And the formation of resin fragments into the following equipment. The normal operation of other equipment in the system is affected, and the water purification pipeline does not have a technical problem with the device for removing resin debris.

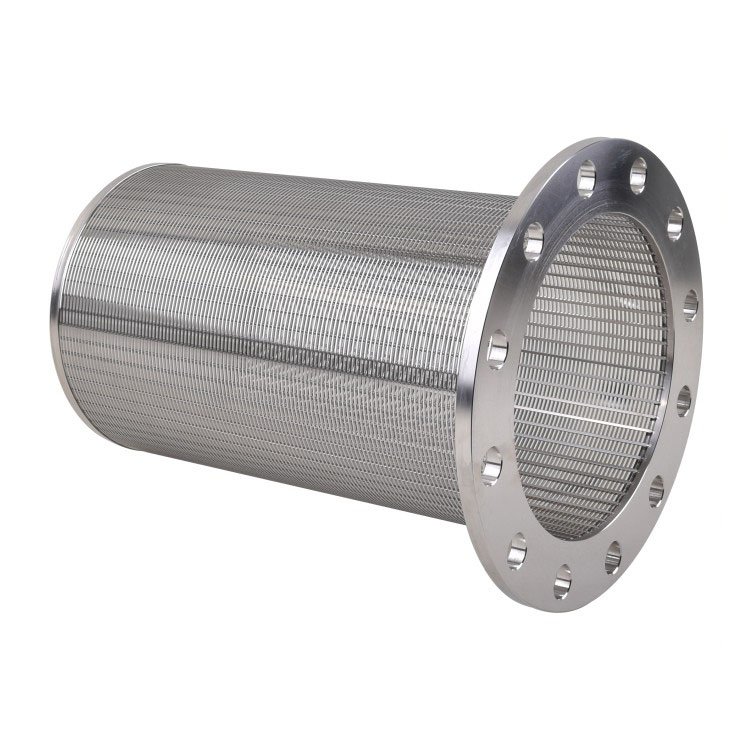

Water Purification Pipeline resin trap filter

When the resin is used for water treatment in the clean water pipeline, when the water pressure disturbance is large (especially high pressure disturbance) and the wall of the resin tank is damaged, the resin will enter the entire water system. It affects the installation of other devices in the normal operating system, so it is necessary to install resin trap filter.

Resin trap filter is mainly to install a wedge wire screen much smaller than the resin on the water system pipeline near the outlet of the ion exchanger and other resin-filled equipment, which has a flushing function. As the resin passes through, it can be intercepted and captured by the screen. At the same time, it can automatically flush through the front and rear pressure difference to discharge the trapped resin out of the system.


A device for removing resin fragments in water purification pipelines, comprising a resin trap. The resin catcher is arranged at the outlet pipe of the device with resin particles.

The device with resin particles includes a soft water bed, mixed bed, in-bed, and yang bed.

Compared with the prior art, the resin catcher of the present utility model is arranged on the outlet pipes of the soft water bed, the mixed bed, the yin bed, and the yang bed. Effectively prevent the resin fragments in the soft water bed, mixed bed, in bed and cation bed from entering into the following equipment. Circumstances that affect the normal operation of other equipment in the system occur.
